• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Cruise control, steering wheel-mounted
• Door locks, power
• Mirror, inside rearview manual day/night
• Speedometer, miles/kilometers
• Steering wheel, urethane

• Alternator, 150 amps
• Capped Fuel Fill
• Exhaust brake
• Rear wheel drive
• Trailer brake controller, integrated

• Daytime Running Lamps, with automatic exterior lamp control
• Traction control

BATTERY, TOP POST THREADED, BATTERY JUMP START STUD

• (located on battery box)

SPARE TIRE DELETE

• (STD)

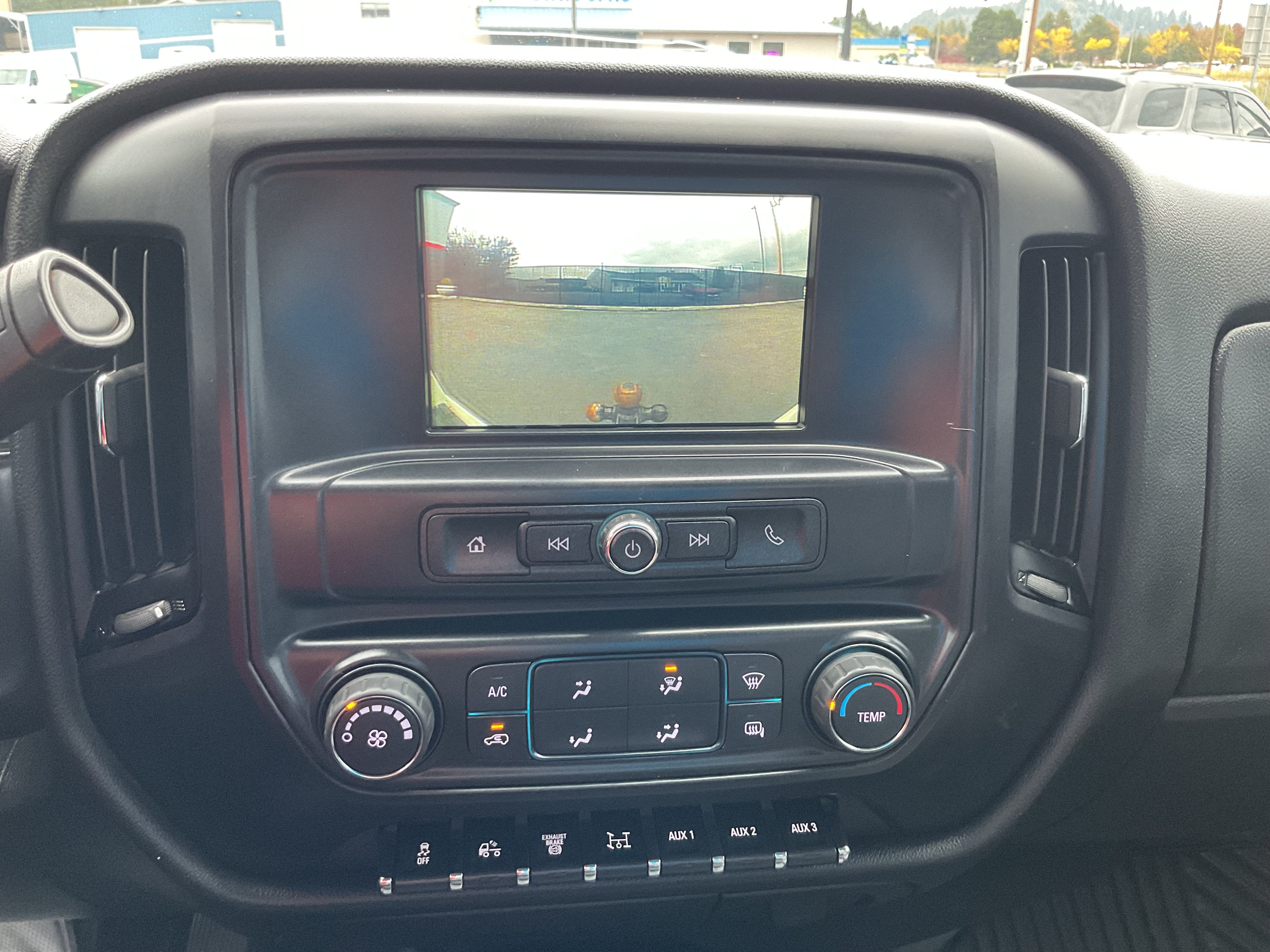

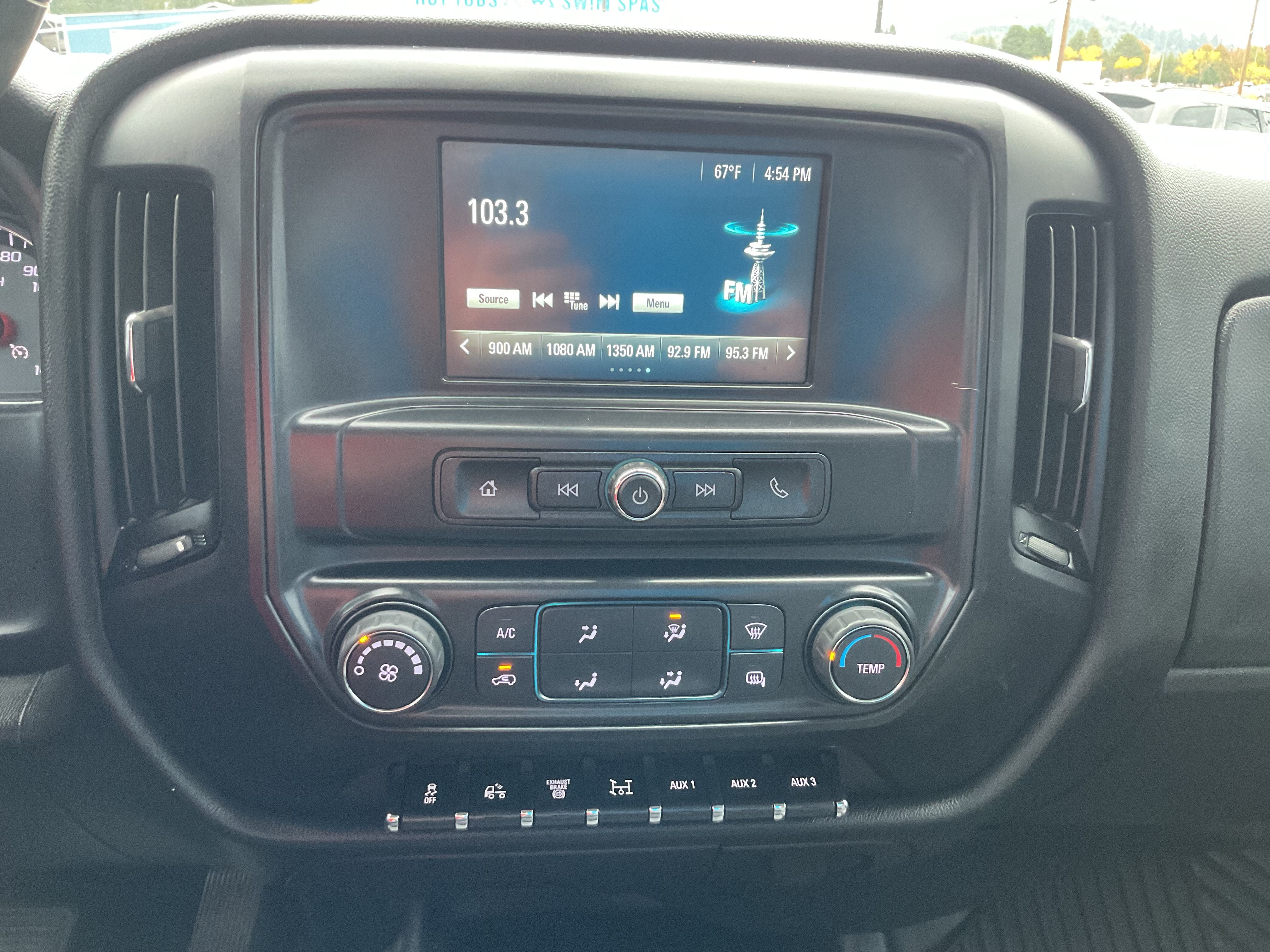

AUDIO SYSTEM, 7" DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT

• AM/FM stereo with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones. (Includes (UQ3) 6-speaker audio system.

BATTERIES, HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS

• includes battery box mounted to left side under cab

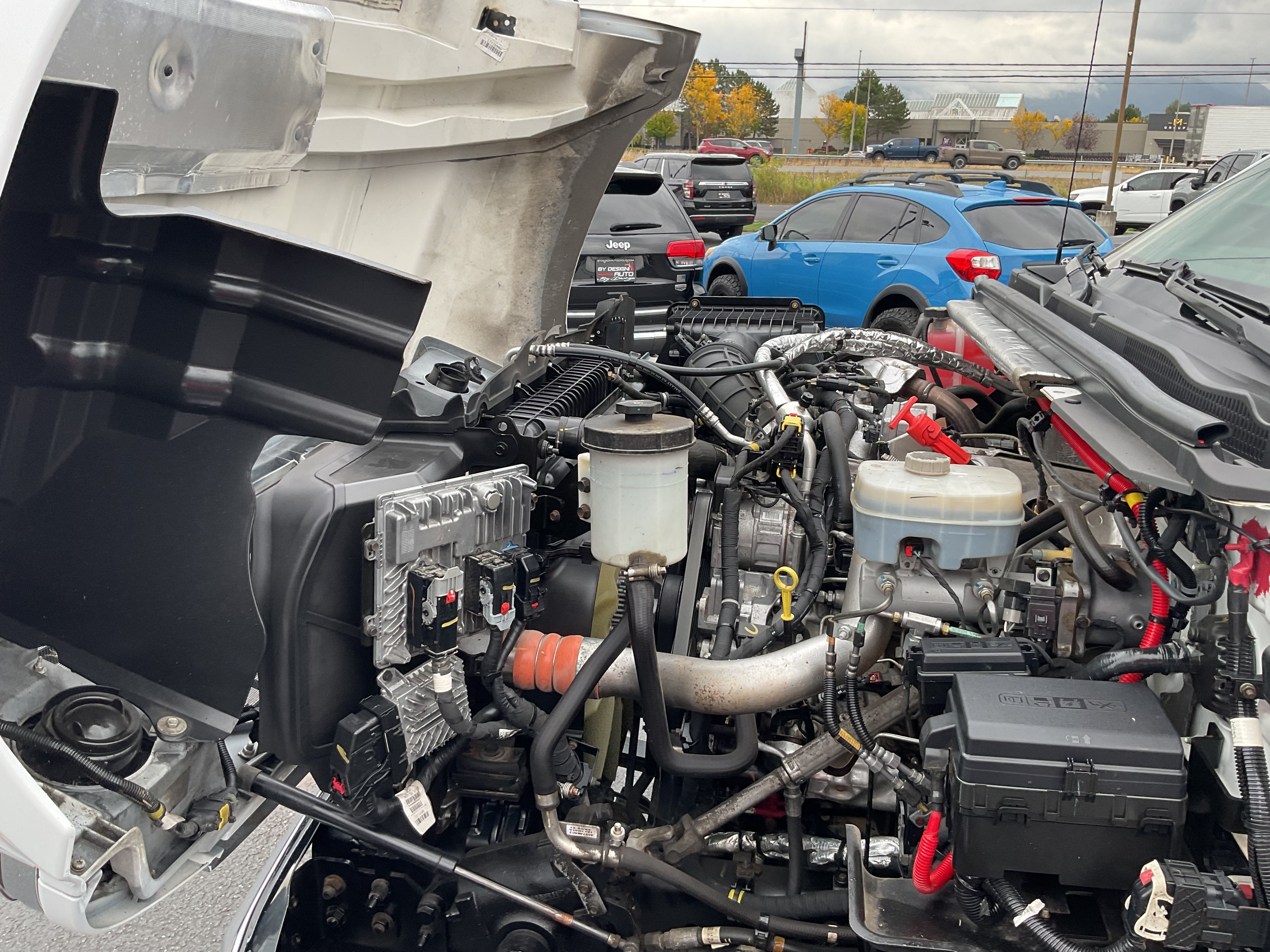

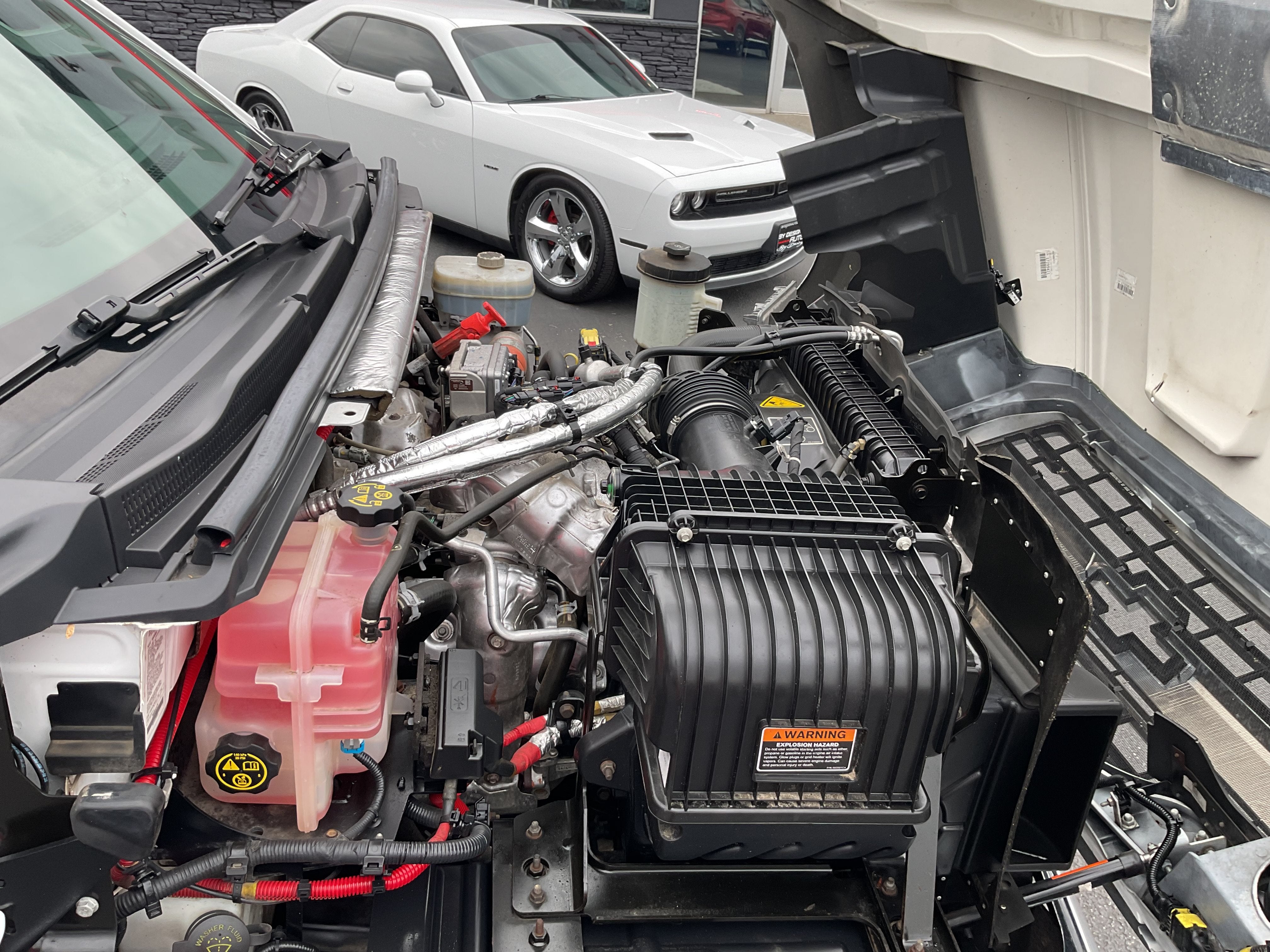

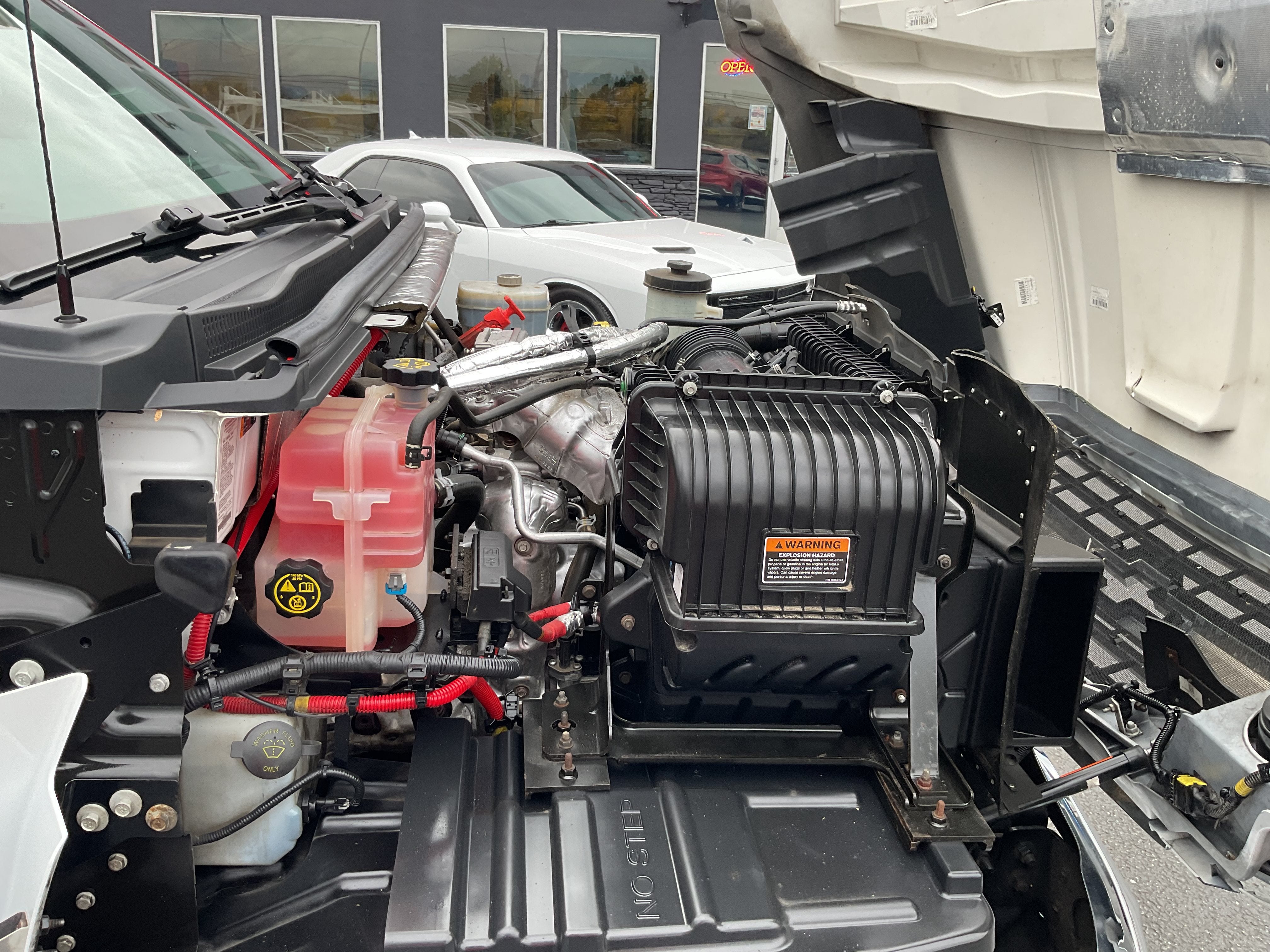

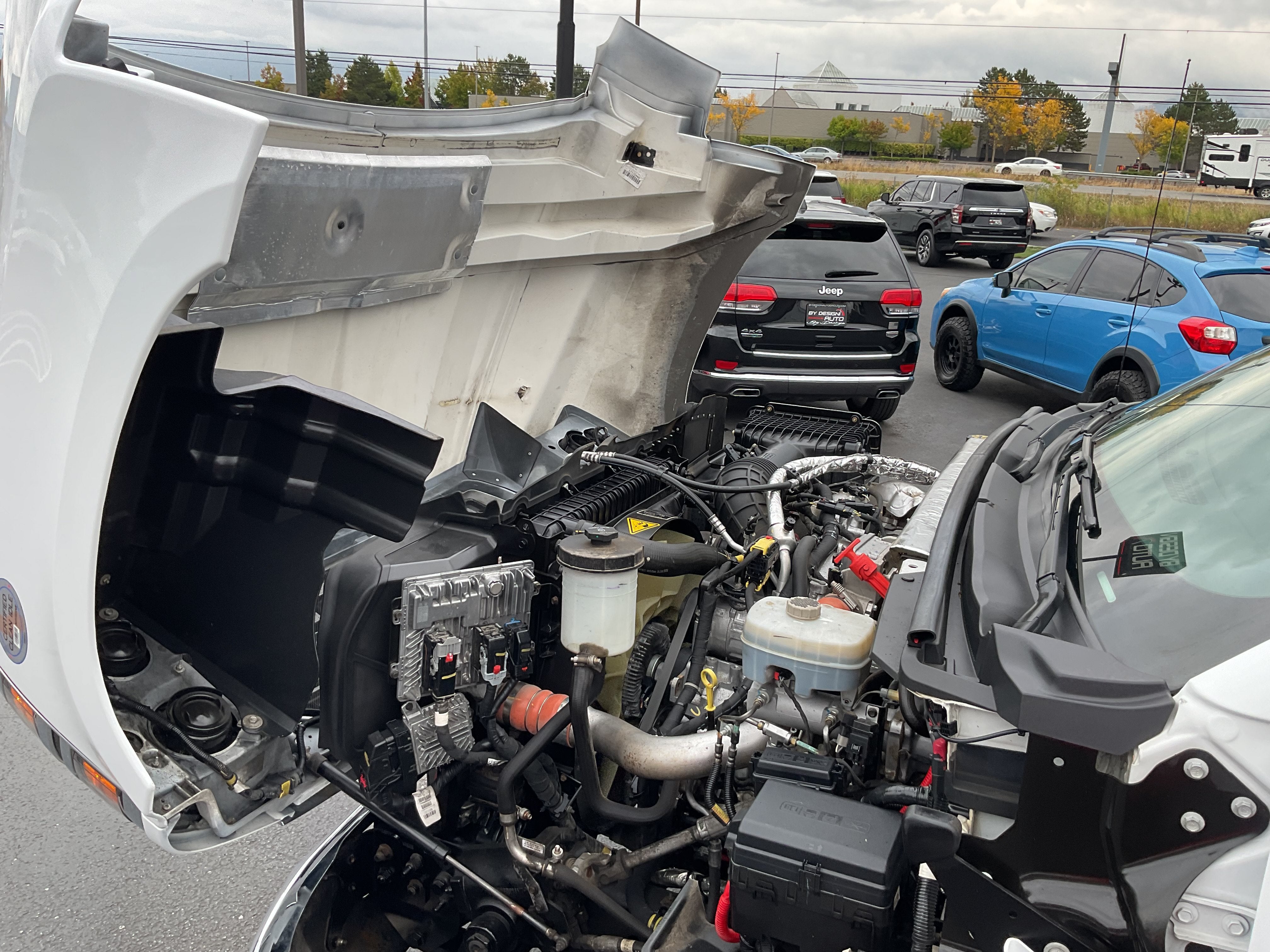

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8, B20-DIESEL COMPATIBLE

• 350 hp @ 2700 rpm
• 700 lb.-ft. torque @ 1600 rpm (STD)

ONSTAR AND CHEVROLET CONNECTED SERVICES CAPABLE

• Includes compass in instrument cluster.

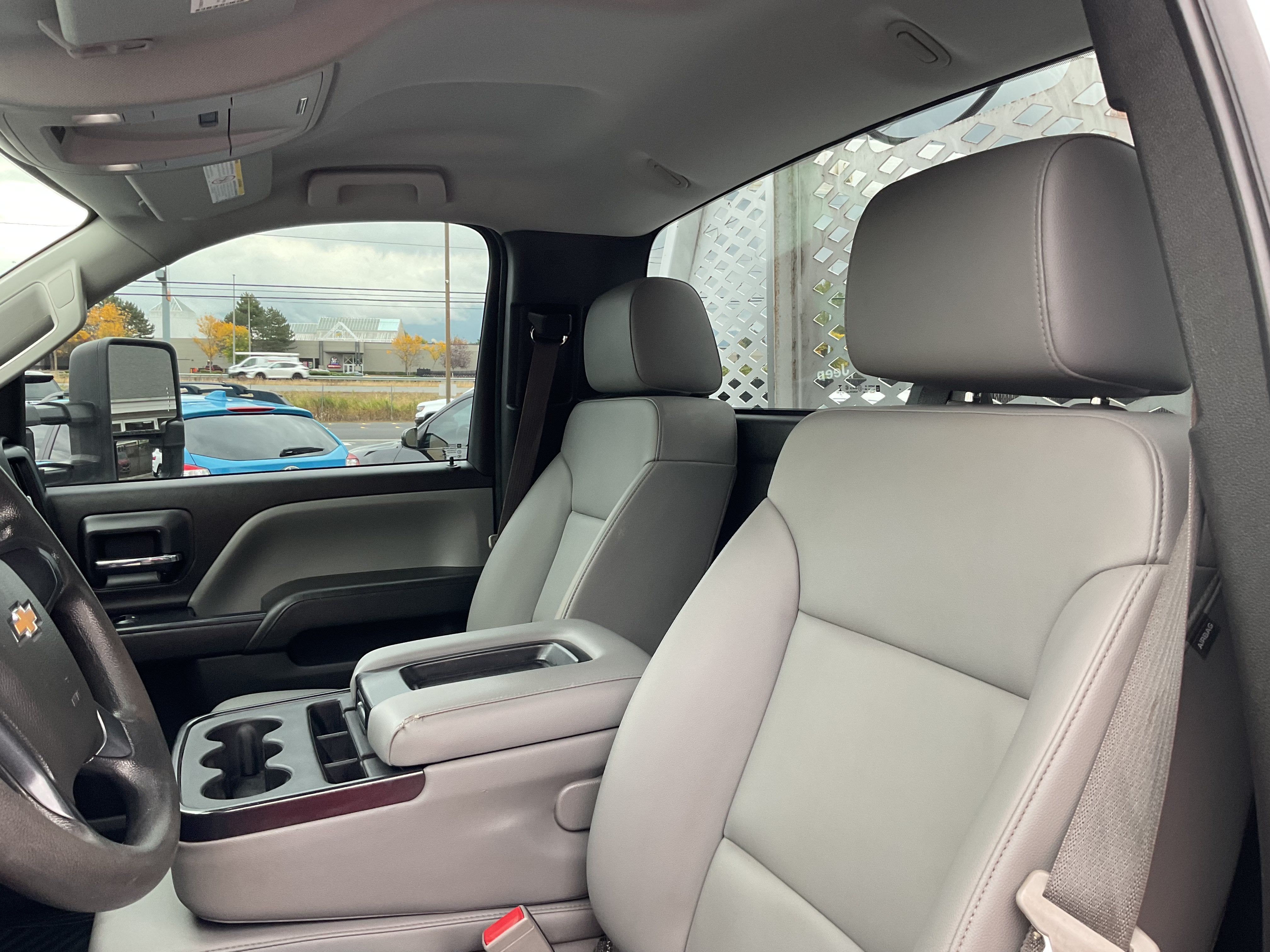

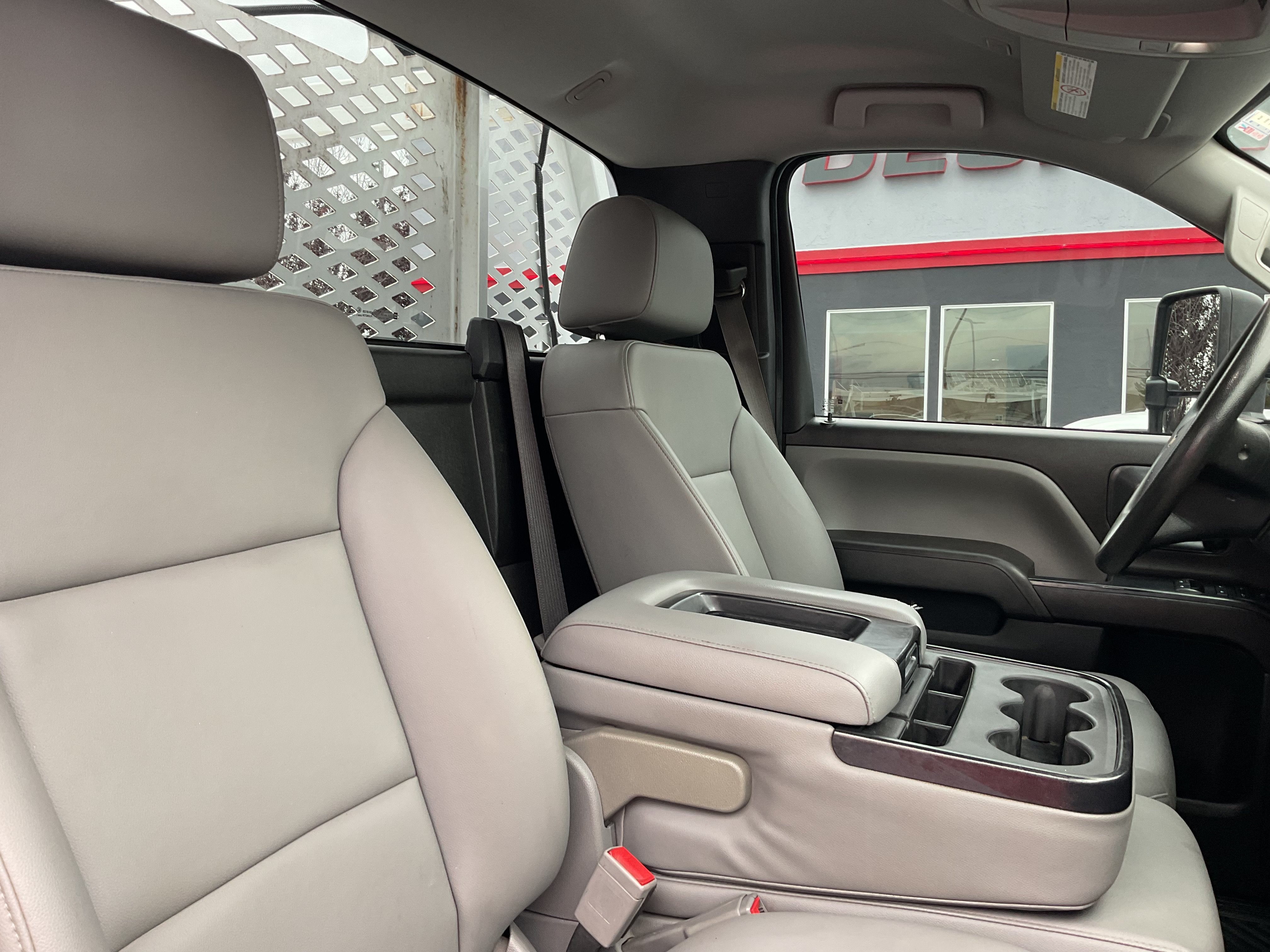

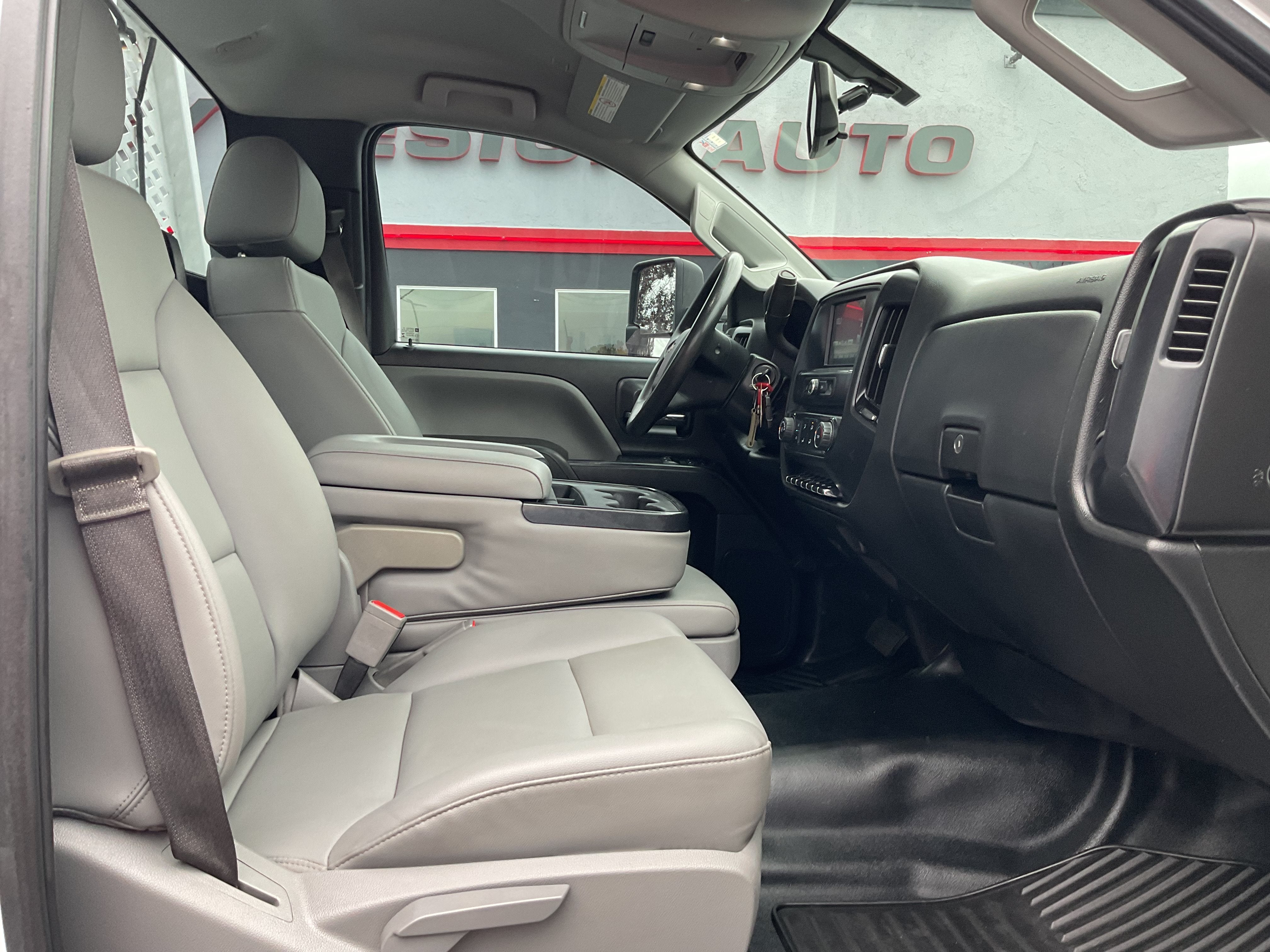

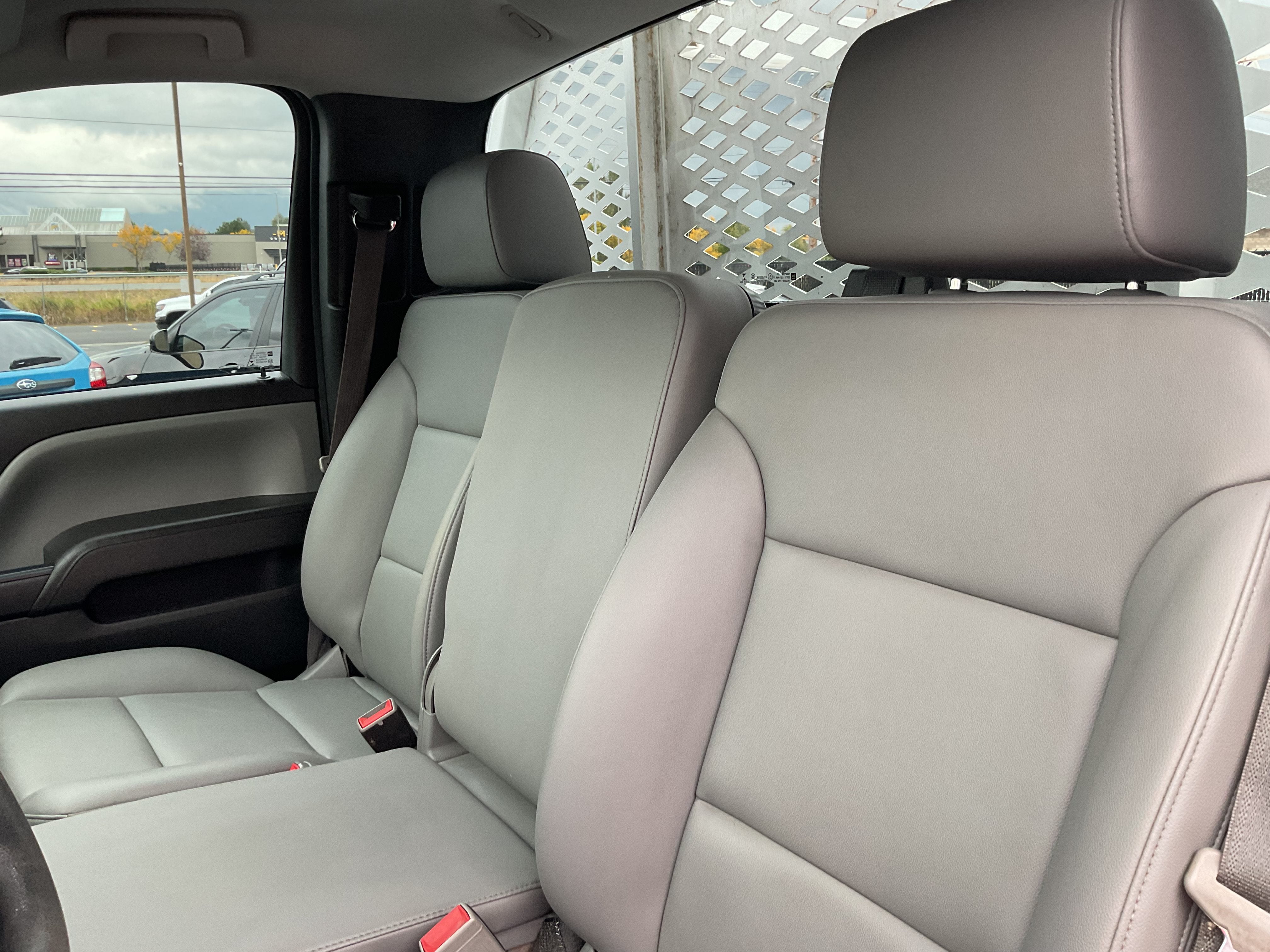

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER

• driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

DPF, DIESEL PARTICULATE FILTER, MANUAL REGENERATION

• customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown

TIRES, REAR 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR

• Max Axle Load: 15
• 000 lb. (STD)

MIRRORS, OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING, UPPER GLASS, MANUAL-FOLDING AND EXTENDING, BLACK.

• Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp

REAR AXLE, 4.30 RATIO

• Max road speed: 75 MPH

RUGGED DUTY SERVICE TRANSMISSION, AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE, ALLISON, A1750RDS

• ratios 3.10 1ST
• 1.80 2ND
• 1.40 3RD
• 1.00 4TH
• 0.70 5TH
• 0.61 Rugged Duty Series

TIRES, FRONT 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR

• Max Axle Load: 7
• 940 lb. (STD)

POWER TAKE OFF, ENGINE CONTROL PROVISIONS

• Access is available on left-hand and right-hand side

• BATTERY TOP POST THREADED BATTERY JUMP START STUD (located on battery box)
• SPARE TIRE DELETE (STD)
• DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS VINYL SEAT TRIM
• LICENSE PLATE KIT FRONT
• AUDIO SYSTEM 7" DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT AM/FM stereo with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones. (Includes (UQ3) 6-speaker audio system.

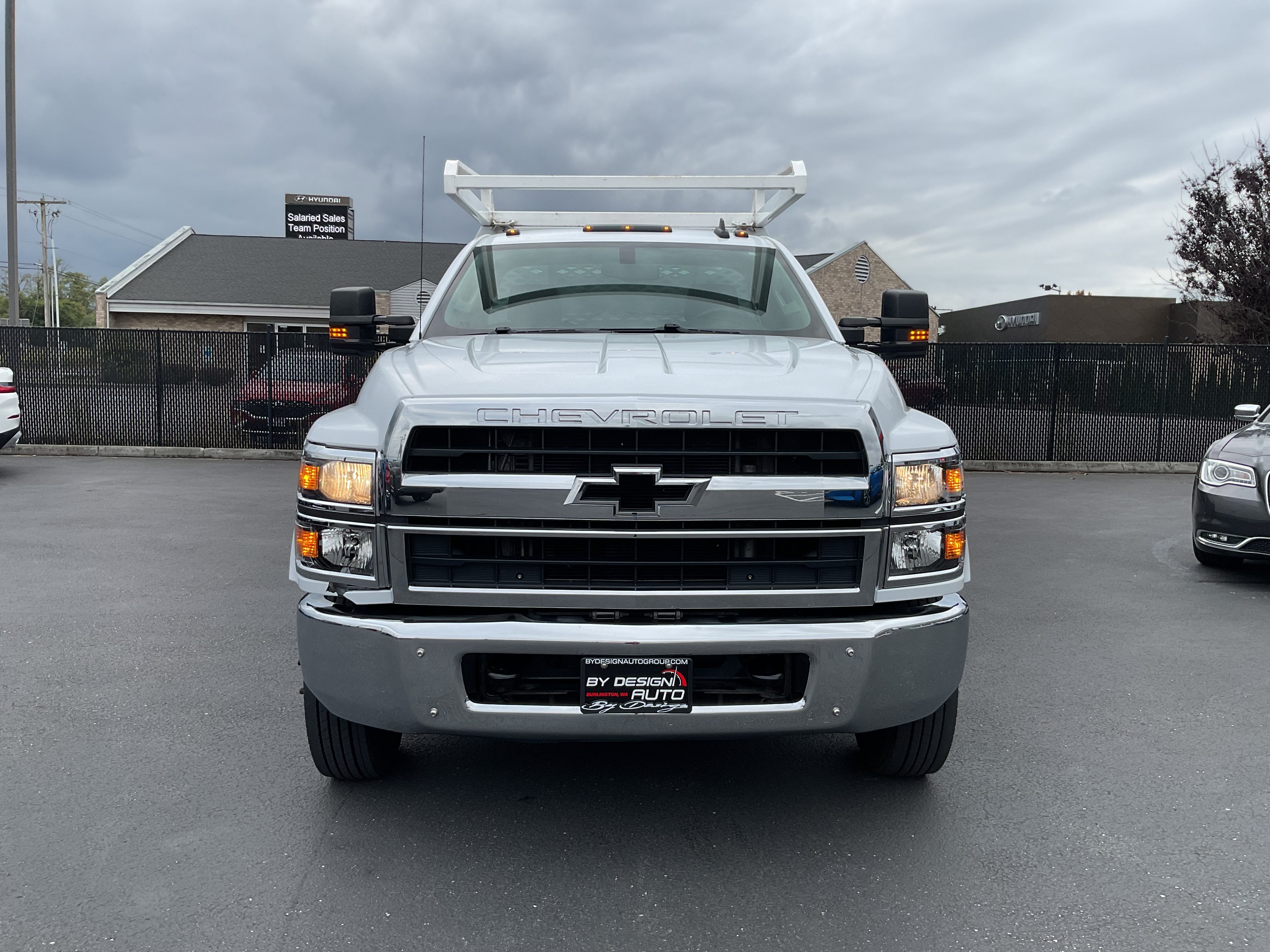

• GRILLE CHROME
• REAR AXLE 15 500 LB. (7 031 KG) DANA SPICER S16-130 SINGLE REDUCTION
• BATTERIES HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS includes battery box mounted to left side under cab
• REMOTE KEYLESS ENTRY
• 6-SPEAKER AUDIO SYSTEM
• FRONT STABILIZER BAR
• SHOCK ABSORBERS REAR
• ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE 350 hp @ 2700 rpm 700 lb.-ft. torque @ 1600 rpm (STD)
• RECOVERY HOOKS FRONT FRAME-MOUNTED BLACK
• ONSTAR AND CHEVROLET CONNECTED SERVICES CAPABLE Includes compass in instrument cluster.
• 34 000 LB. GCWR (15 422 KG)
• WHEELBASE 189" (480.1 CM) 108" CA
• BUMPER FRONT CHROME
• TIRE VALVE CAP HALTEC FLOW-THRU
• EXHAUST SYSTEM REAR EXIT
• GVWR 19 500 LB. (8845 KG)
• WINDOWS POWER WITH DRIVER EXPRESS UP AND DOWN AND EXPRESS DOWN ON ALL OTHER WINDOWS
• 4G LTE WI-FI HOTSPOT CAPABLE
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• SUMMIT WHITE
• FRONT AXLE 7 000 LB. DANA SPICER D800-N "I"-BEAM NON-DRIVING
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• AXLE LIMITED SLIP DANA SPICER TRUETRAC TORQUE PROPORTIONING LIMITED SLIP
• ADDITIONAL FUEL 5 GALLONS
• PAINT SOLID
• REAR SUSPENSION 13 500 LB. (6 123 KG) MULTI-LEAF VARI-RATE
• OIL FILLED FRONT HUBS SYNTHETIC OIL EMGARD FE-75W-90
• WHEELS 19.5" X 6.75" STEEL GREY PAINTED 8-HOLES HUB PILOTED
• OIL SEAL FOR FRONT HUB CHICAGO RAWHIDE NITRILE FOR OIL LUBRICATED WHEEL BEARINGS
• DPF DIESEL PARTICULATE FILTER MANUAL REGENERATION customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
• 5500 HD SERIES
• TIRES REAR 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR Max Axle Load: 15 000 lb. (STD)
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
• REAR AXLE 4.30 RATIO Max road speed: 75 MPH
• RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A1750RDS ratios 3.10 1ST 1.80 2ND 1.40 3RD 1.00 4TH 0.70 5TH 0.61 Rugged Duty Series
• ALTERNATOR 220 AMPS
• TIRES FRONT 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR Max Axle Load: 7 940 lb. (STD)
• FRONT SUSPENSION 7 000 LB. (3 175 KG) MULTI-LEAF INCLUDES SHOCK ABSORBERS
• POWER TAKE OFF ENGINE CONTROL PROVISIONS Access is available on left-hand and right-hand side
• FUEL TANK FRONT AND REAR 65 GALLON TOTAL
• POWER OUTLET 110-VOLT AC
• Turbocharged
• Rear Wheel Drive
• Power Steering
• ABS
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Running Boards/Side Steps
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Split Bench Seat
• Vinyl Seats
• Adjustable Steering Wheel
• Power Door Locks
• Cruise Control
• A/C
• Traction Control
• Stability Control
• Traction Control
• Daytime Running Lights
• Automatic Headlights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Front Side Air Bag
• Front Head Air Bag
• Passenger Air Bag On/Off Switch

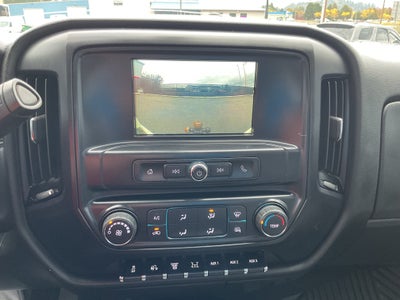

• Back-Up Camera

• Vehicle
• Number of Passenger Doors: 2
• Front Frame Rating: - TBD -
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 1300
• Cold Cranking Amps @ 0° F (Primary): 1100
• Cold Cranking Amps @ 0° F (2nd): 1300
• Cold Cranking Amps @ 0° F (2nd): 1100
• Maximum Alternator Capacity (amps): 220
• Maximum Alternator Capacity (amps): 150
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 48
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 7000
• Gross Axle Wt Rating - Front (lbs): 6250
• Gross Axle Wt Rating - Rear (lbs): 15500
• Gross Axle Wt Rating - Rear (lbs): 11000
• Curb Weight - Front (lbs): 4771
• Curb Weight - Front (lbs): 4704
• Curb Weight - Rear (lbs): 2965
• Curb Weight - Rear (lbs): 2863
• Curb Weight - Rear (lbs): 2905
• Curb Weight - Rear (lbs): 2803
• Gross Vehicle Weight Rating Cap (lbs): 19500
• Gross Vehicle Weight Rating Cap (lbs): 16500
• Gross Combined Wt Rating (lbs): 34000
• Gross Combined Wt Rating (lbs): 26000
• Suspension
• Suspension Type - Front: Multi-Leaf
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 7000
• Spring Capacity - Front (lbs): 6250
• Spring Capacity - Rear (lbs): 13500
• Spring Capacity - Rear (lbs): 11000
• Axle Type - Front: I-Beam
• Axle Type - Rear: Single Reduction
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Front (lbs): 6250
• Axle Capacity - Rear (lbs): 15500
• Axle Capacity - Rear (lbs): 11000
• Axle Ratio (:1) - Rear: 4.30
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51
• Shock Absorber Diameter - Rear (mm): 49
• Stabilizer Bar Diameter - Front (in): 1.26
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.375 x 1.625
• Rear Brake Rotor Diam x Thickness (in): 15.375 x 1.625
• Tires
• Front Tire Order Code: XDK
• Rear Tire Order Code: YAL
• Front Tire Size: 225/70R19.5G
• Rear Tire Size: 225/70R19.5G
• Front Tire Capacity (lbs): 7940
• Rear Tire Capacity (lbs): 15000
• Revolutions/Mile @ 45 mph - Front: 640
• Revolutions/Mile @ 45 mph - Rear: 640
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Number Of Tires Spare: 0
• Wheels
• Front Wheel Size (in): 19.5 x 6.75
• Rear Wheel Size (in): 19.5 x 6.75
• Front Wheel Offset (mm): - TBD -
• Rear Wheel Offset (mm): - TBD -
• # of Bolt Holes - Front: 8
• # of Bolt Holes - Rear: 8
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Front Bolt Pattern: 8 Hole JIS 10.83"
• Rear Bolt Pattern: 8 Hole JIS 10.83"
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 16.6
• Steering Ratio (:1), At Lock: 19.6
• Turning Diameter - Curb to Curb (ft): 53.2
• Turning Diameter - Curb to Curb (ft): 41.2
• Turning Diameter - Wall to Wall (ft): 54.8
• Turning Diameter - Wall to Wall (ft): 42.8
• Frame
• Frame Type: High Strength Low Alloy Steel
• Sect Modulus Rails Only (in³): 8.08 Front/10.93 Belly/8.47 Rear
• Frame RBM (N/A): 404000 Front/546500 Belly/423500 Rear
• Frame Strength (lbs): 50000
• Frame Thickness (in): 0.3125
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 65
• Fuel Tank Capacity, Approx (gal): 40
• Fuel Tank Location: Front & Rear
• Fuel Tank Location: Behind Rear Axle
• Exterior Dimensions
• Wheelbase (in): 189
• Wheelbase (in): 141
• Length, Overall (in): 224.4
• Width, Max w/o mirrors (in): 92.7
• Height, Overall (in): 82.7
• Height, Overall (in): 82.95
• Overhang, Front (in): 34.4
• Overhang, Rear w/o bumper (in): 49
• Front Bumper to Back of Cab (in): 115.47
• Cab to Axle (in): 108
• Cab to Axle (in): 60
• Cab to End of Frame (in): 157.1
• Cab to End of Frame (in): 109.1
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 34.1
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 42.8
• Front Leg Room (in): 45.28
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 60.75
• Summary
• Vehicle Name: Chevrolet Silverado MD
• Body Style: Regular Cab Chassis Cab
• Medium Duty Performance
• Driver Ratio: 1
• Torque @ Clutch Engage (ft-lbs): - TBD -
• Torque Converter: 1.764
• Static Loaded Radius (in): 15
• Max Speed For Gradeability: 75
• Max Speed For Gradeability: 79
